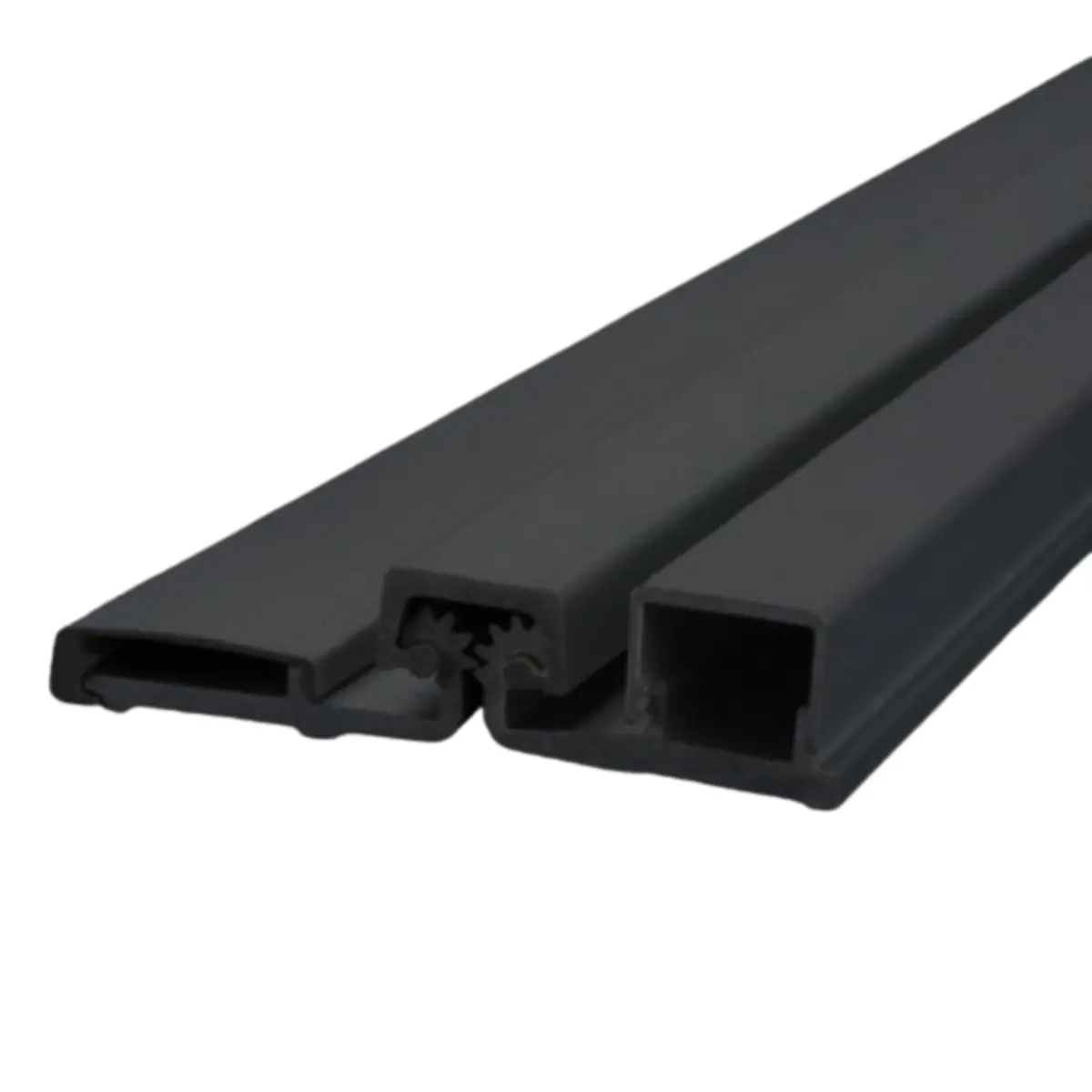

Continuous Geared Hinges / FULL SURFACE / Finish: Dark bronze

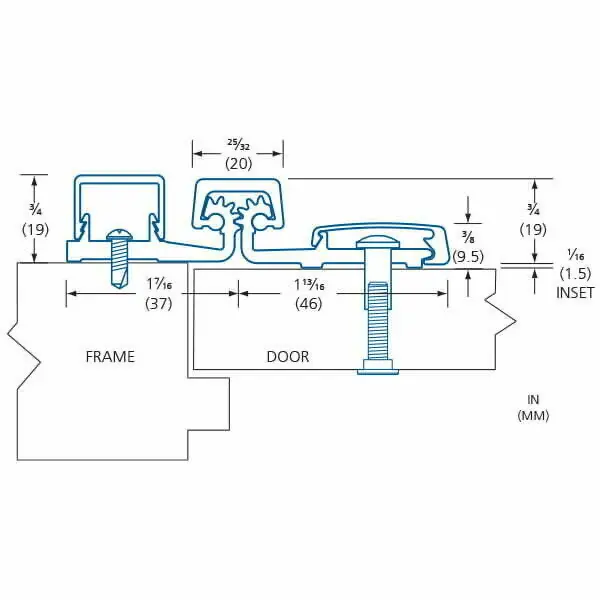

Continuous Geared Hinges / FULL SURFACE / Finish: Dark bronze - Image 2

Continuous Geared Hinges / FULL SURFACE / Finish: Dark bronze

SKU CGH-FS-DKBRZ Category

Heavy-duty full surface continuous geared hinge, dark bronze finish.

$314.80

Buying in bulk? Get volume & contractor discounts. Request a Trade Quote
Fast Shipping Ships from Halifax
Pickup Available In-store collection
Trade Discounts Contractor pricing
  • Finish: Dark Bronze
  • Type: Full Surface, Heavy Duty
  • Fire Rating: cULus listed up to 3 hours
  • Door Thickness: 1¾”–2¼”
  • Maximum Door Width: 48″
  • Door Inset: 1/16″
  • Maximum Door Weight: 450 lbs
  • Reinforcement: Required for doors over 200 lbs
  • Includes: #12-24 × 5/8″ undercut TEK screws
  • Includes: 1/4-20 sex-bolts for doors up to 2¼” thick
  • cULus listed fire rating for up to 3 hours
  • Full surface, heavy duty
  • For narrow faced doors, 1¾–2¼″ (44.5–57mm) thick and up to 48″ (1219mm) wide
  • 1/16″ (1.5mm) door inset
  • 450lbs (204kg) door weight maximum
  • Door and frame reinforcement required for door weight greater than 200lbs (90.7kg)
  • #12-24 x 5/8″ (16mm) undercut TEK screws included
  • 1/4-20 sex-bolts for doors up to 2¼″ (57mm) thick included
